ZWO 2-Inch Mounted Filter Drawer - M54
ZWO 2-Inch Mounted Filter Drawer - M54
Beskrivelse

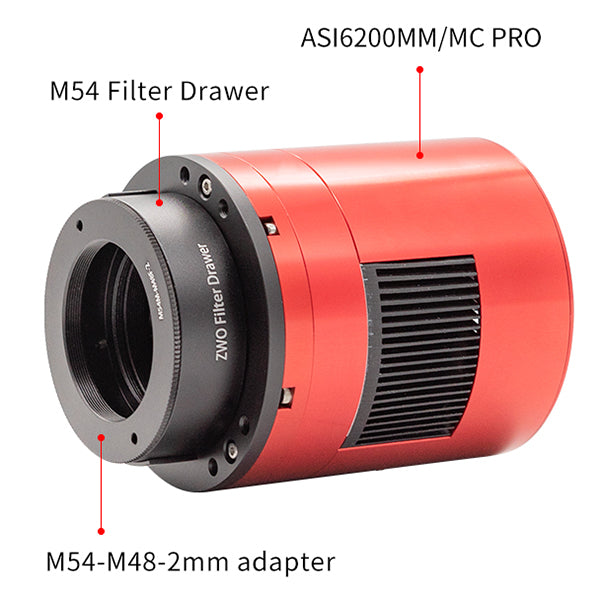

The ZWO 2-inch Mounted Filter Drawer (M54 thread), with 20 mm ring design, is specifically made to match with ZWO ASI6200MM and MC Pro cameras.
Technical information::

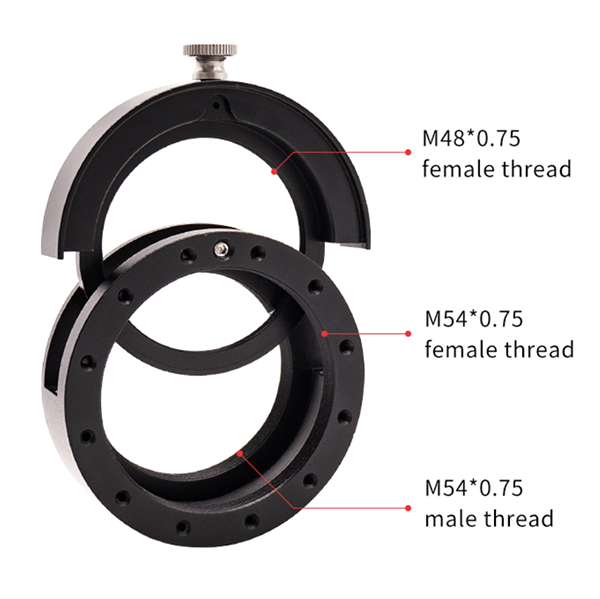

- M54 * 0.75" female thread on telescope back.
- M48 * 0.75" female thread in drawer for 2-inch filter.
- M54 * 0.75" male thread for ASI6200 camera front.
- 70 mm H x 70 mm L x 20 mm W.
- Manufacturer's note：This solution can only reach 56 mm back focus length. Also the M48-M42 adapter will block the camera sensor a little bit, so we recommend you use the 2-inch EFW with M68 OAG.

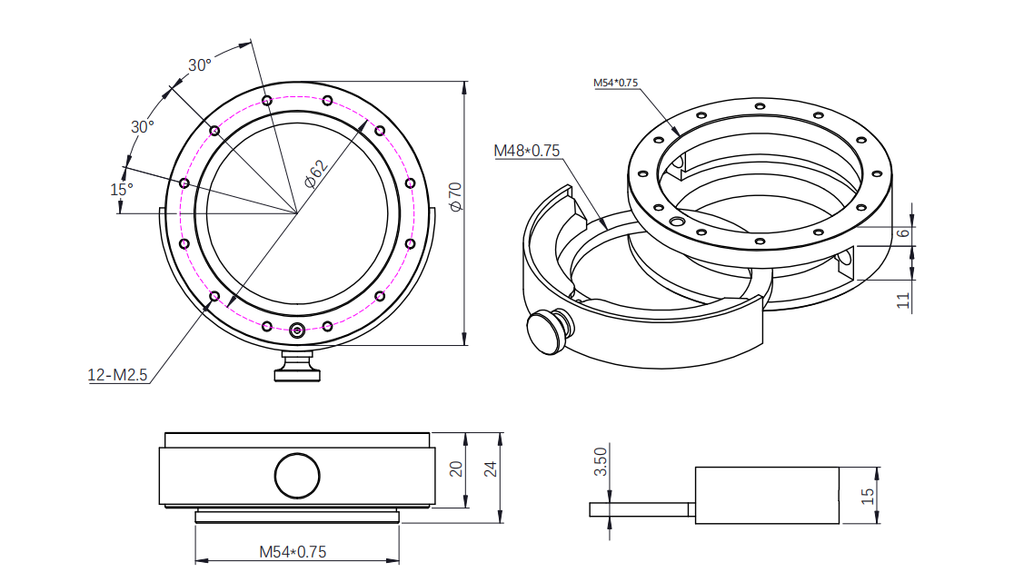

- Click on the Gallery thumbnail to view mechanical drawing.
There are double strong magnets to create a stronger adsorption hold, easier installation, and easier drawer removal.

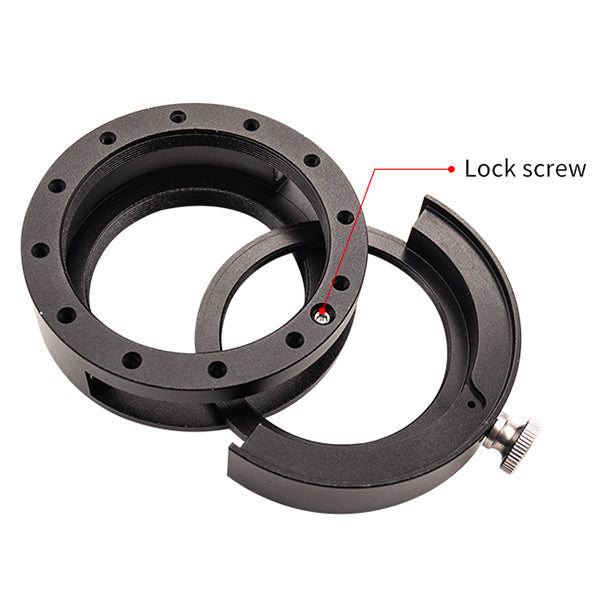

There is a lock-screw on the side of the M54 filter Drawer. The locking function is helpful on adjusting the tension to eliminate the gap for double insurance during use.

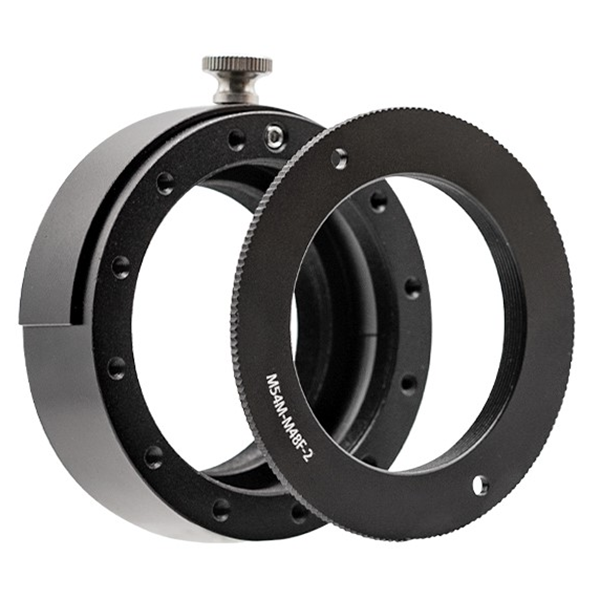

Also included: AM54-M48-2 adapter with this M54 Filter Drawer, so you can use the drawer with your camera or your telescope.
The ASI6200 camera 55 mm backfocus solution
Manufacturer's Note：This solution can only reach 56 mm back focus length. If you want 55 mm back focus length. Also the M48-M42 adapter will block the camera sensor a little bit. So we recommend you use the 2-inch EFW with M68 OAG.
- All old versions of the ZWO F-HLDRs are NOT compatible with this new filter drawer
The ZWO 2-inch Filter Drawer has an M54 thread with 21 mm ring design and is made for ZWO ASI6200MM and MC Pro cameras.
- M54*0.75 female thread on telescope back.
- M48*0.75 female thread in drawer for 2-inch filter.
- M54*0.75 male thread for ASI6200 camera front.
- Magnets installed to hold the drawer securely.
- Click on the Gallery thumbnail to view mechanical drawing.
- ZWO 2-Inch Mounted Filter Drawer - M54
